功能特點/Features
MK-510S KTV包房音箱，針對量販?zhǔn)終TV店、卡拉OK包房設計制作。造型獨特出眾，兩分頻3單元設計。低音強勁豐滿,中高頻圓潤明亮，可滿足多種K歌場合使用。

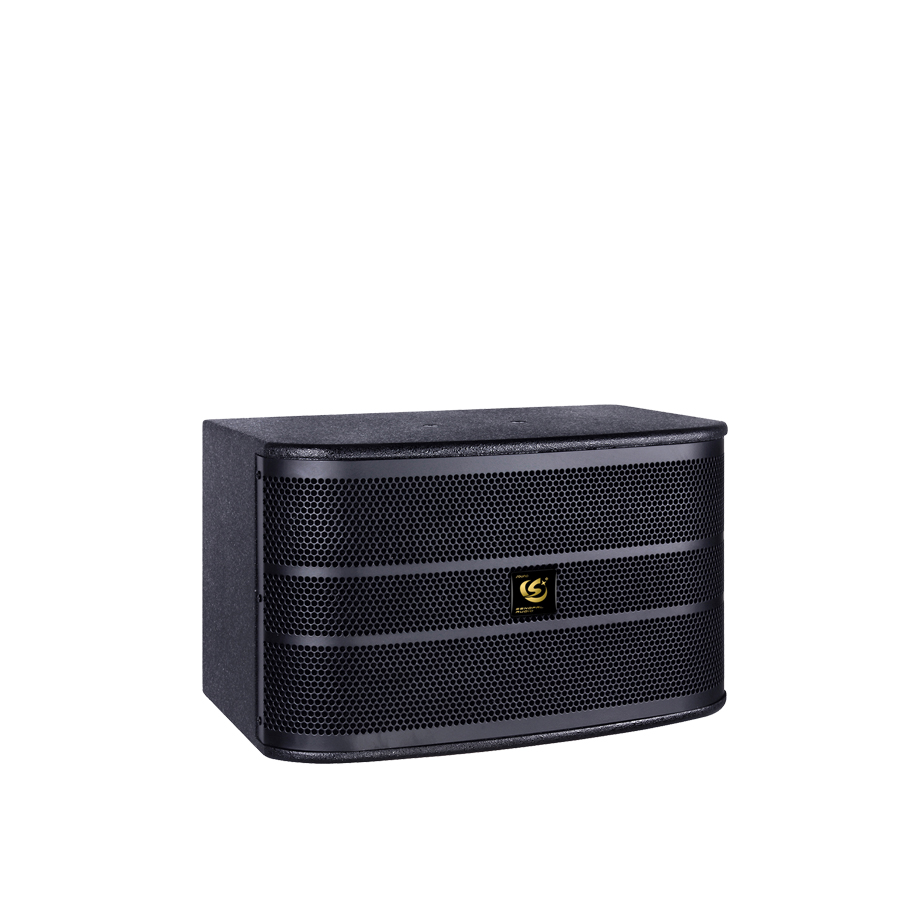

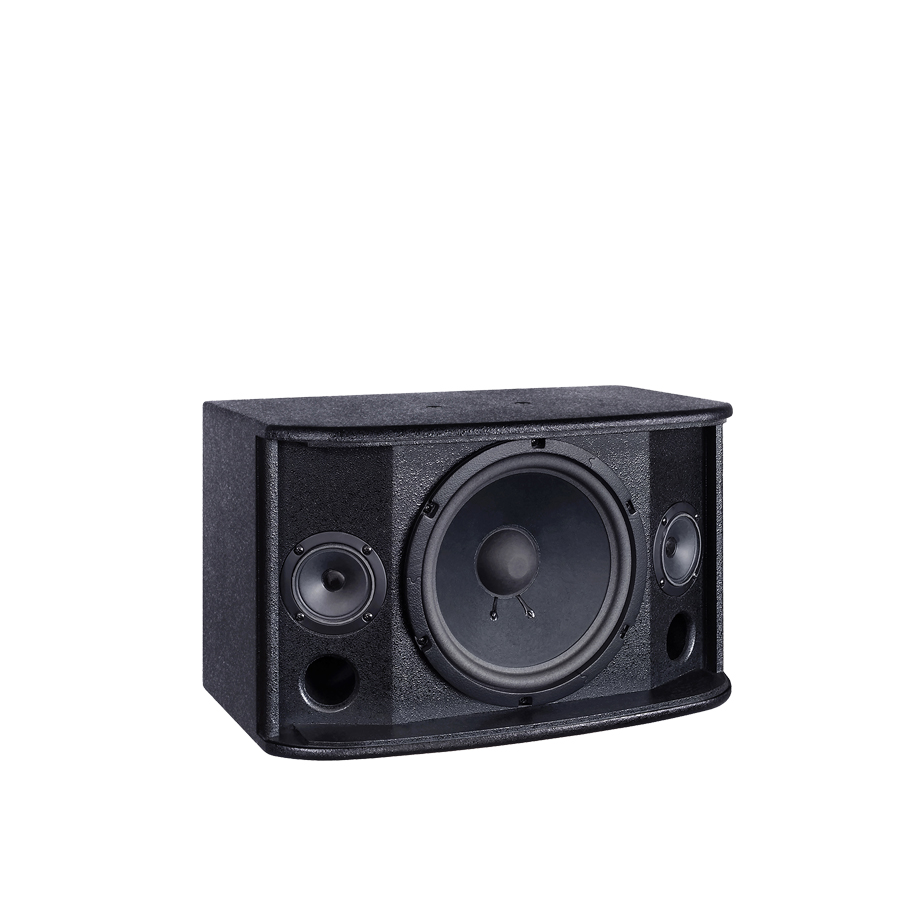

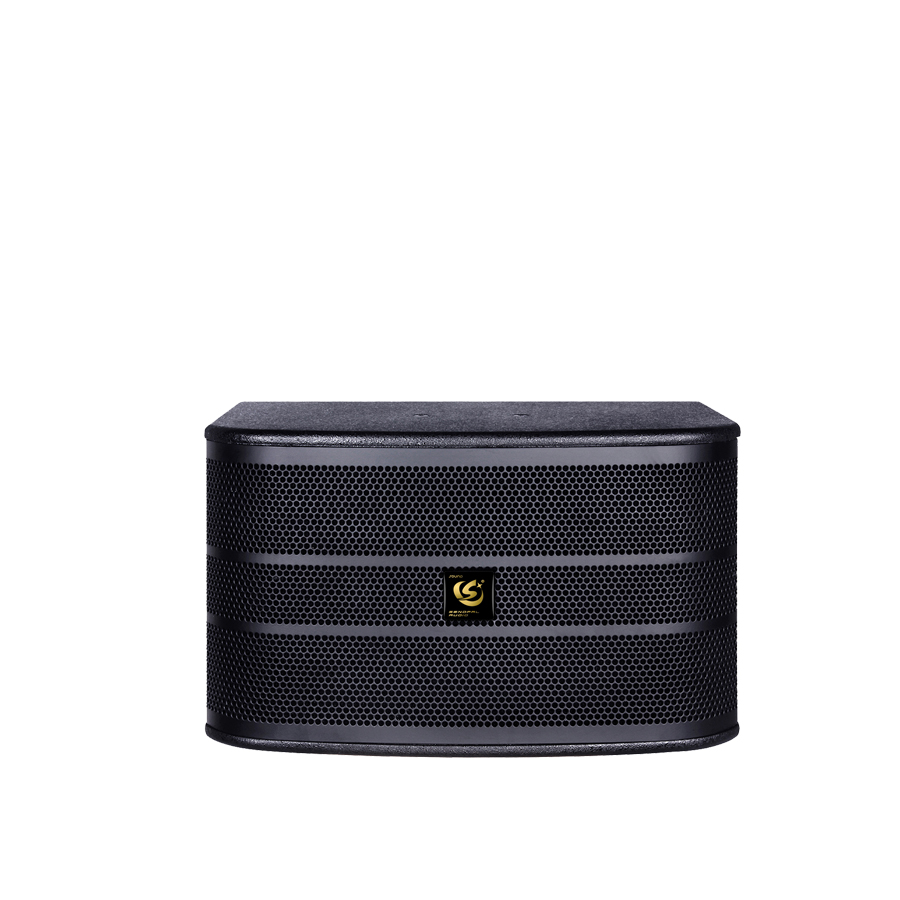

MK-510S KTV private room speakers are designed and manufactured for mass-market KTV stores and karaoke private rooms. Unique and outstanding shape, two frequency division 3 unit design. The bass is strong and plump, and the mid and high frequencies are round and bright, which can be used in a variety of K song occasions.
技術參數/Technlcal Parameters
| 型號 Model | MK-510S |
| 系統組成 System Type | 兩分頻3單元 Two division frequency 3-unit |
| 單元配置 Unit Configuration | LF10″X1+MF3″X1+HF3″X1 |
| 額定功率 Rated Power | 250W |
| 阻抗 Impedance | 8ohms |
| 最大聲壓級 Maximum SPL | 114dB |
| 頻率響應 Frequency Response | 55Hz-20KHz |
| 靈敏度 Sensitivity | 92dB |
| 擴散角度 Diffusion Angle | 120°X90° |
| 輸入連接器 Input Connector | 接線柱 Connection pillar |
| 板材材質 Enclosure Material | 中纖板（MDF） |
| 表面處理 Surface Treatment | 黑色點漆 Black spot paint |
吊掛硬件 Hanging Hardware
| 3XM8 |
| 尺寸 Size | 295x510x310mm（HxWxD） |

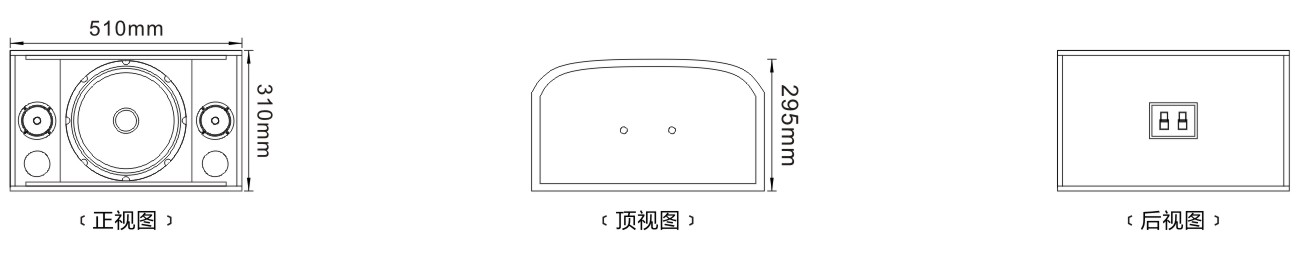

結構示意圖/Structure Diagram
應用場所/Application place
KTV包房/多功能廳/家庭娛樂/會議/教學
KTV room / Function room / Home entertainment / Conference / Teaching
