功能特點/Features

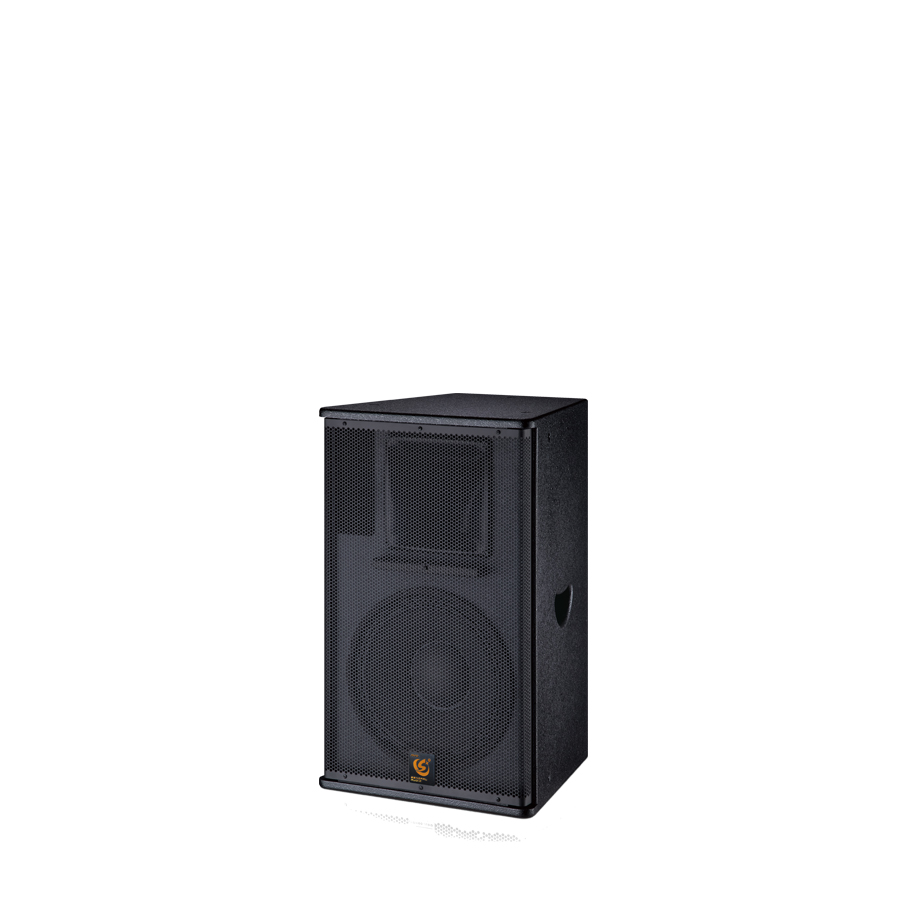

CA作為獨立的全頻音箱，免去了外置分頻驅動的麻煩，高頻壓縮驅動器安裝在一 個持續指向性90度X50度號角上。高頻號角可以轉動，使得多角度的箱體既能水平放置也可以垂直放置。令系統更加簡潔。適用于戶外流動擴聲系統，室內SHOW吧、慢搖吧及固定安裝系統等場所使用。
技術參數/Technlcal Parameters
| 型號/MODEL | CA-12 |
| 組件/Component | LF1X 12" (300mm)HF 1X1.1.75" (44mm) |
| 連接器/Connector | 2xNEUTRIK NL4 |
| 頻率響應/Frequency response | 60HZ- 18KHZ(±3db) |
| 靈敏度/Sensitivity | 98dB |
連續聲壓/Continuous sound pressure
| 121dB |
| 最大聲圧/Maximum sound pressure | 126dB |
| 額定功率/Rated power | 300W |
| 峰值功率/Peak power | 600W |
| 標稱阻抗/ Nominal impedance | 8Ω |
| 水平覆蓋角度/Horizontal Cover Angle | 80°×50° |
| 推薦功放機/Recommended power amplifier | 450W |
| 尺寸（高*寬*深）/Size (height * Width * Depth) | 640x390x395mm |
| 凈重/Net Weight | 21kg |
|
|
應用場所/Application place
會議室/電教室/多功能廳/室內外輔助擴聲
Conference Room/Classroom/Function Room/Indoor and outdoor auxiliary sound reinforcement
