功能特點/Features

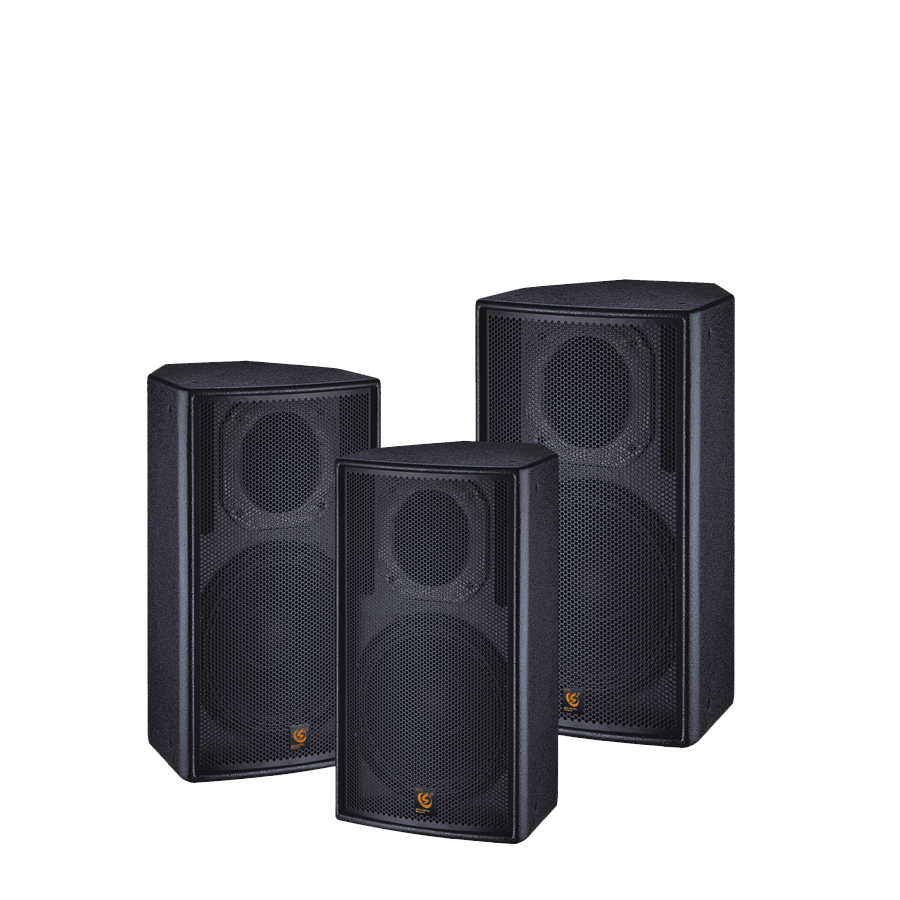

M系列音箱外觀簡潔秀麗，是一款針對室內擴 聲，樸聲的產品。音質純正，干凈，層次分明，有較高的還原度。適用于會議室，多功能廳，小面積房間，大房間樸聲等場所。
技術參數/Technlcal Parameters
| 型號/MODEL | M-112 |
| 額定功率Rated power | 400W |
| 頻率響應Frequency response | 80HZ- 18KHZ(±3db) |
| 標稱阻抗Nominal impedance | 8Ω |
| 靈敏度(1w/1m)Sensitivity 1W / 1m | 98dB |
| 連續聲壓級(1w/lm)Continuous SPL 1W / lm | 128dB |
| 輻射角度(HxV)Radiation Angle HxV | 90° x50° |
| 單元規格Unit specification | LF1X 12" 300mm)HF 1X1.75" (44mm) |
| 箱體材料Box Material | 全樺木膠合板 |
| 吊裝系統Hoisting system | 三點吊掛系統 |
| 峰值功率Peak power | 600W |
| 輸入接口Input interface | Neutrik NL _4MP x 2 |
| 規格(高x寬x深)Size high x wide x deep | 600x350x380mm |
|
|
應用場所/Application place
會議室/電教室/多功能廳/室內外輔助擴聲
Conference Room/Classroom/Function Room/Indoor and outdoor auxiliary sound reinforcement
