功能特點/Features
26A是最實用的KTV包房音箱，采用兩分頻5單元設計，全系列3寸紙盆高音，高密度中纖板箱體，表面PVC吸塑工藝制作。

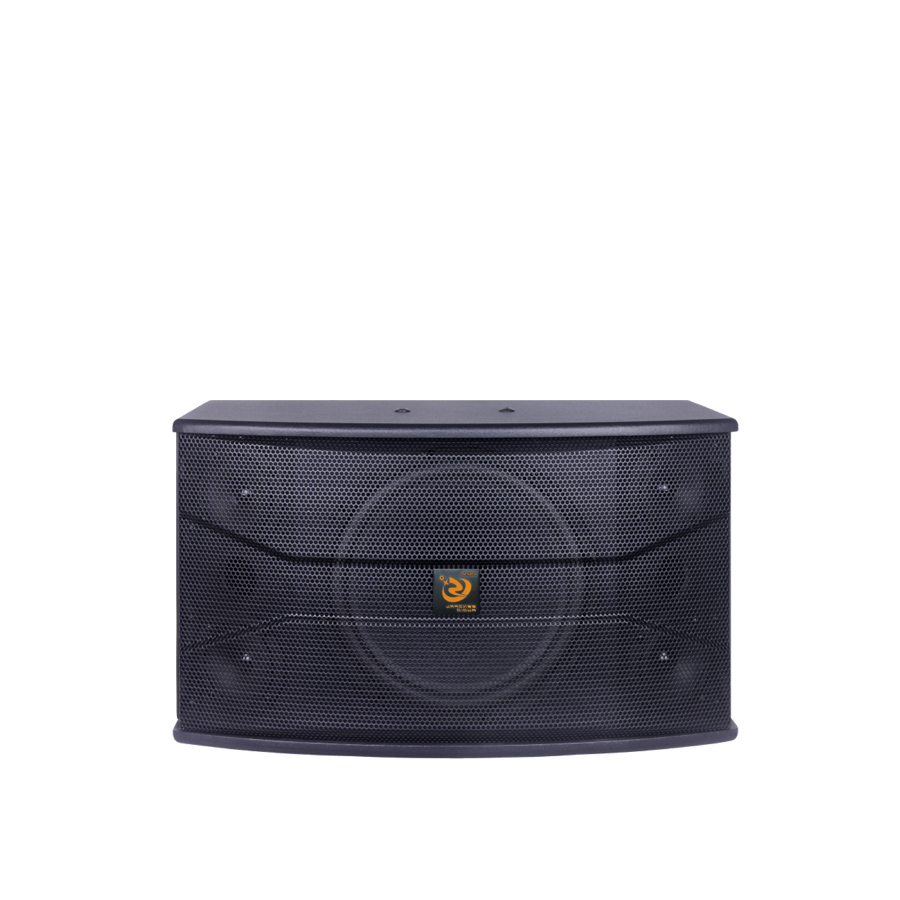

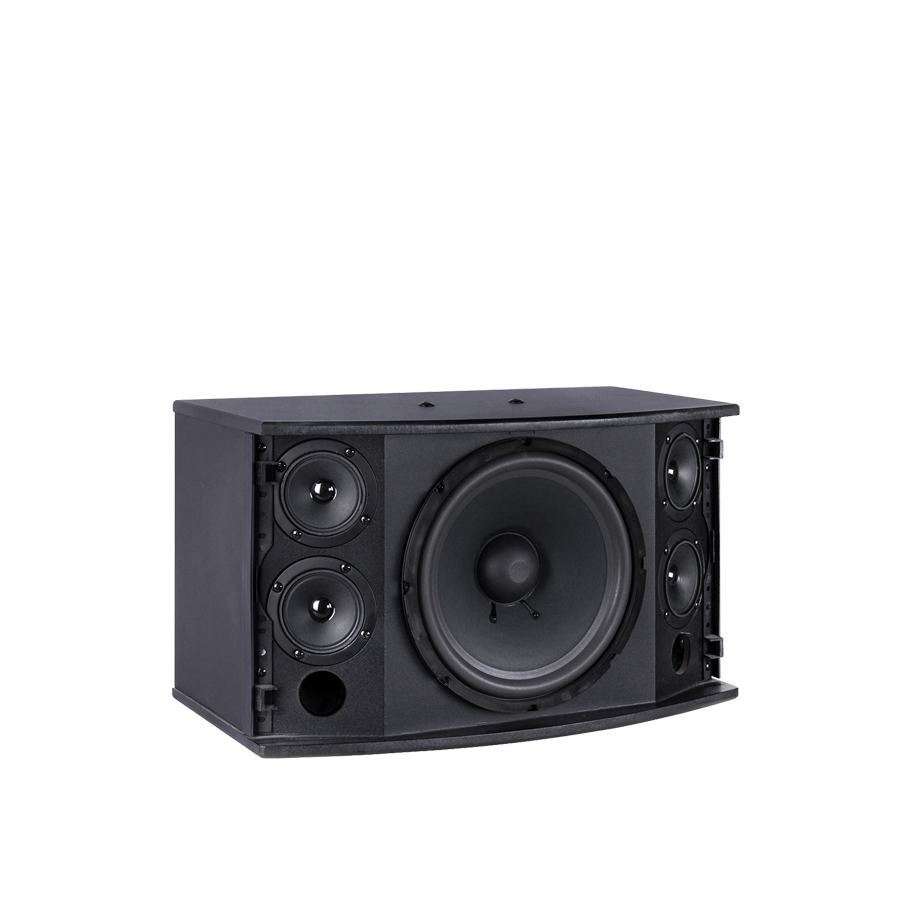

26A is the most practical KTV room speaker, Two division frequency 5-unit design, Full range of 3-inch Paper basin high frequency speakers, High-density MDF speaker body, Surface PVC blister process production,
技術參數/Technlcal Parameters
型 號 Model | 26A |
|
系統組成 System composition | 兩分頻5單元 Two division frequency 5-unit |
|
|
單元結構 Unit structure | LF10″X1+HF14X4
|
|
|
輸入阻抗 Input resistance | 8Ω |
|
額定功率 Rated power | 180W |
|
峰值功率 Peak power | 360W |
|
最大聲壓級 Maximum SPL | 109dB |
|
|
靈敏度
Sensitivity | 100dB |
|
擴散角度 Diffusion Angle | 110°X60° |
|
頻率響應 Frequency response | 40Hz~20KHz |
|

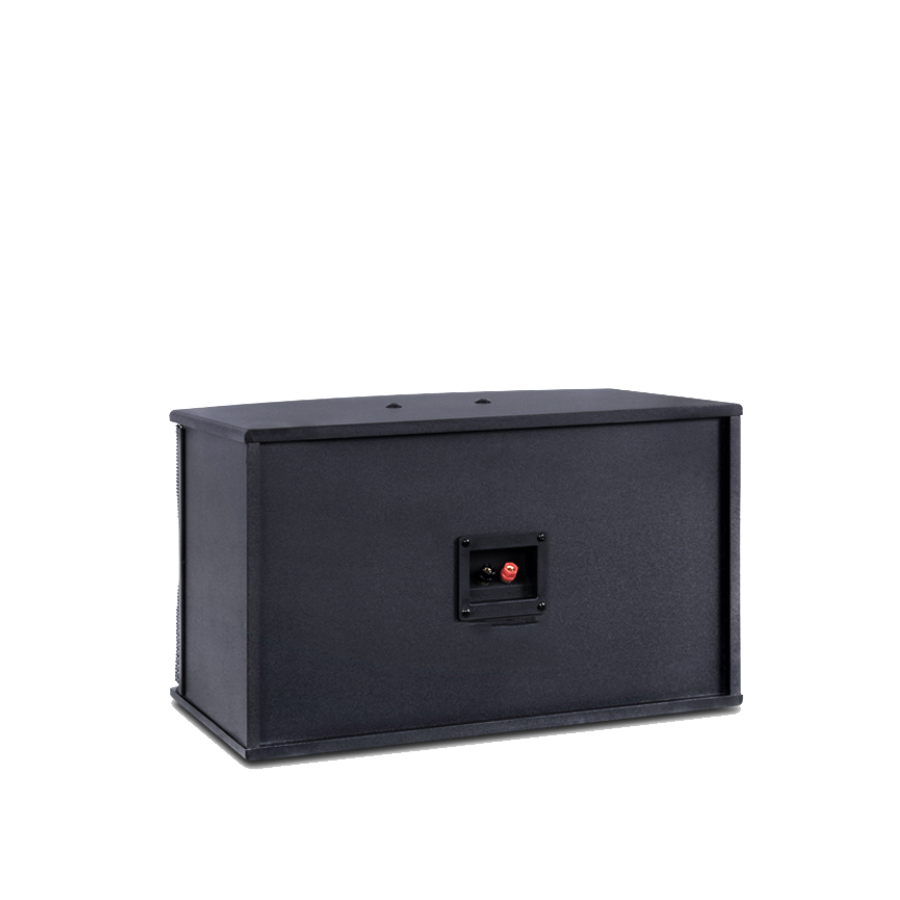

輸入連接器 Input connector | 接線柱 Connection pillar |
|
板材材質 Enclosure material | 中纖板 MDF |
|
表面處理 Surface treatment | PVC吸塑 PVC Blister |
|
吊掛硬件 Hanging hardware | 2XM8 |
|
規格尺寸 Standard sizes | 300x510x300mm（HxWxD） |

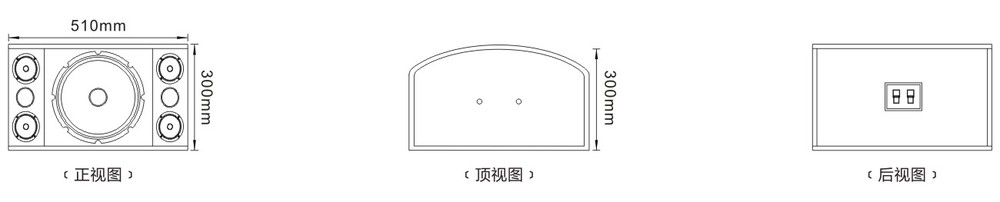

結構示意圖/Structure Diagram
應用場所/Application place
多功能廳/家庭娛樂/會議/教學
Function room / Home entertainment / Conference / Teaching
