功能特點/Features
BK系列是一款針對KTV市場需求，結合多年娛樂場所經驗而量身訂做的卡包音箱產品。采用5單元，低頻沉穩有力彈性好，中高頻明亮清晰、細膩圓潤。廣泛適用于，娛樂場所、量販?zhǔn)終TV、會議室、多功能廳等。

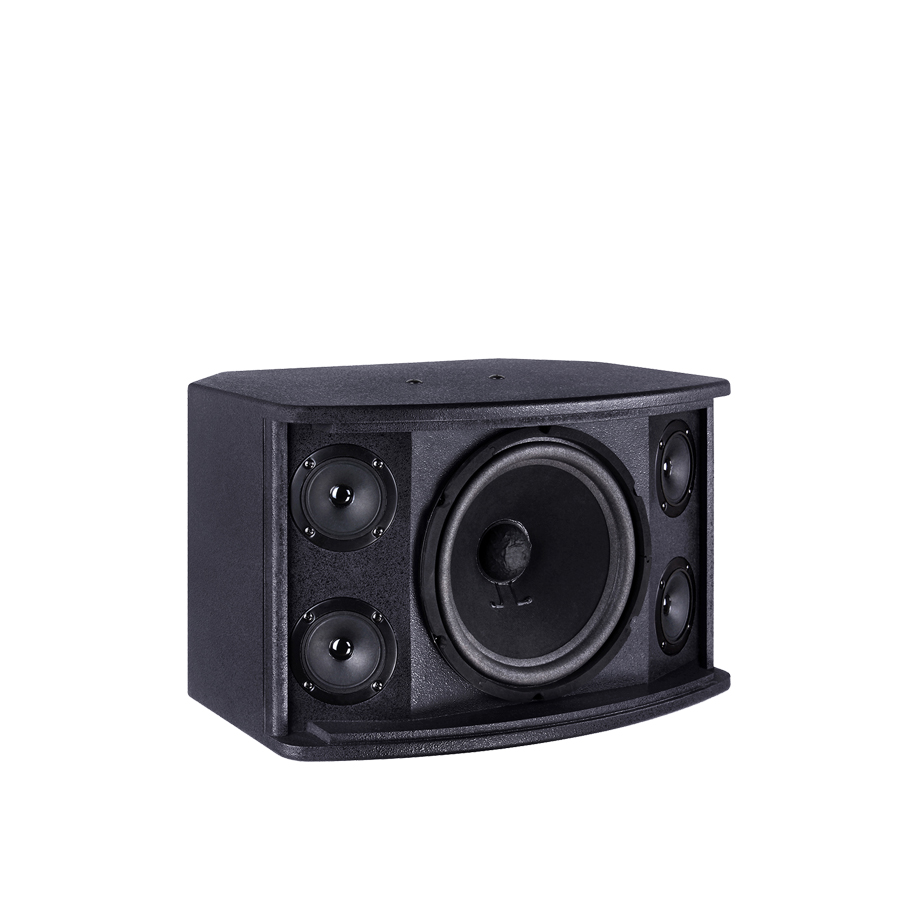

BK series is aimed at the KTV market demand, Combined with many years of entertainment experience and tailor-made card package speaker products. 5 unit division design, Low frequency is stable and strong, good elasticity, Medium and high frequency are bright, clear, delicate and round. It is widely used in entertainment venues, mass-market KTVs, conference rooms, multifunctional halls, etc.
技術參數/Technlcal Parameters
| 型號 Model | BK-810 |
| 系統組成 System Type | 兩分頻5單元 Two division frequency 5-unit |
| 單元配置 Unit Configuration | LF10″X1+HF14X4 |
| 額定功率 Rated Power | 250W |
| 阻抗 Impedance | 8ohms |
| 最大聲壓級 Maximum SPL | 127dB |
| 頻率響應 Frequency Response | 55Hz-20KHz |
| 靈敏度 Sensitivity | 101dB |
| 擴散角度 Diffusion Angle | 110°X60° |

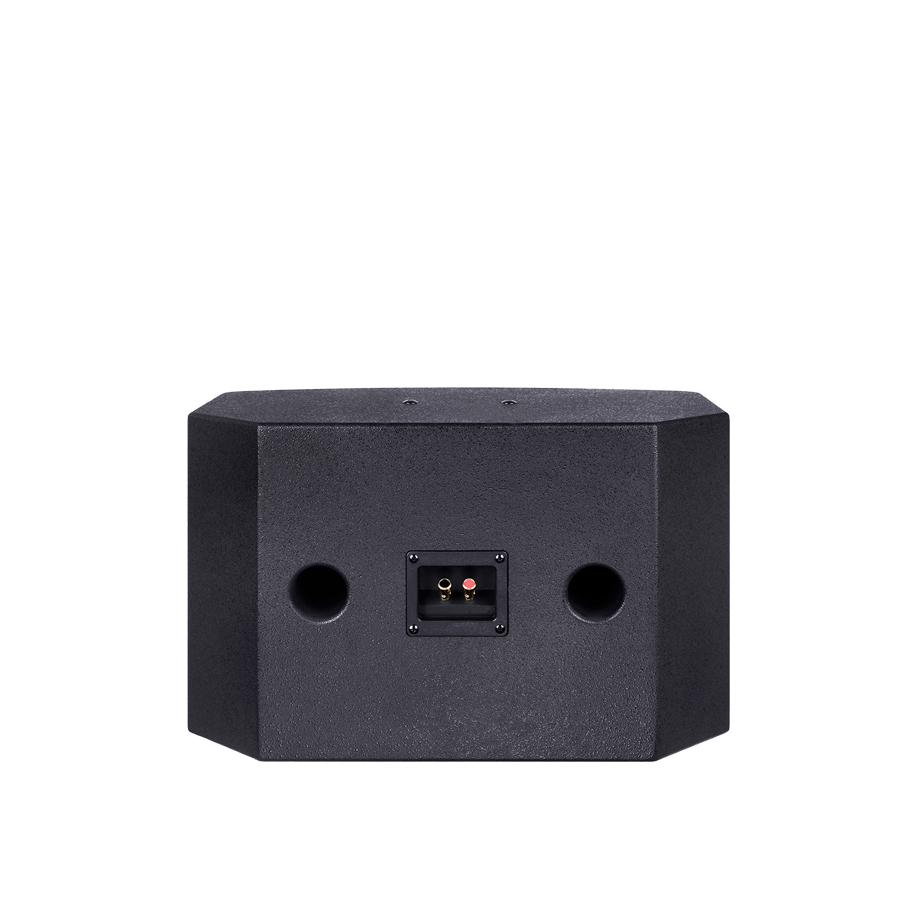

| 輸入連接器 Input Connector | 接線柱 Connection pillar |
| 板材材質 Enclosure Material | 中纖板（MDF） |

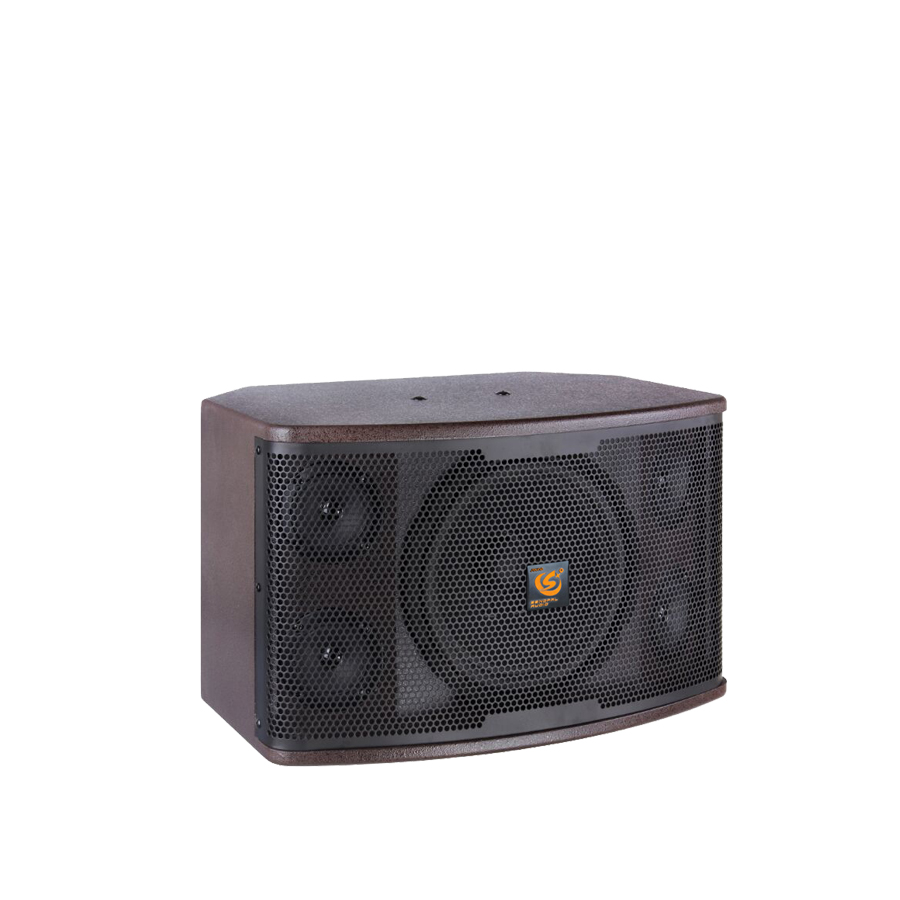

| 表面處理 Surface Treatment | 黑色/棕色點漆 Black/Brown spot paint |
吊掛硬件 Hanging Hardware
| 2XM8 |
| 尺寸 Size | 320x520x330mm（HxWxD） |

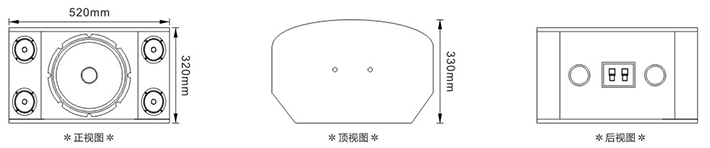

結構示意圖/Structure Diagram
應用場所/Application place
娛樂場所/KTV包房/多功能廳/家庭娛樂/會議/教學
Entertainment / KTV room / Function room / Home entertainment / Conference / Teaching
